Battery

CR2032

3V lithium coin cell

CR2032 is a 3-volt lithium coin cell — about 20 mm across and 3.2 mm thick. Same diameter as CR2025 and CR2016, but thicker; do not swap by size alone. See CR2032 vs CR2025 if you are choosing between the two.

Chemistry
lithium
Voltage
3 V
Diameter
20 mm
Thickness
3.2 mm
Used by
49 devices

Common uses: Motherboards · Key fobs · Scales · Fitness trackers

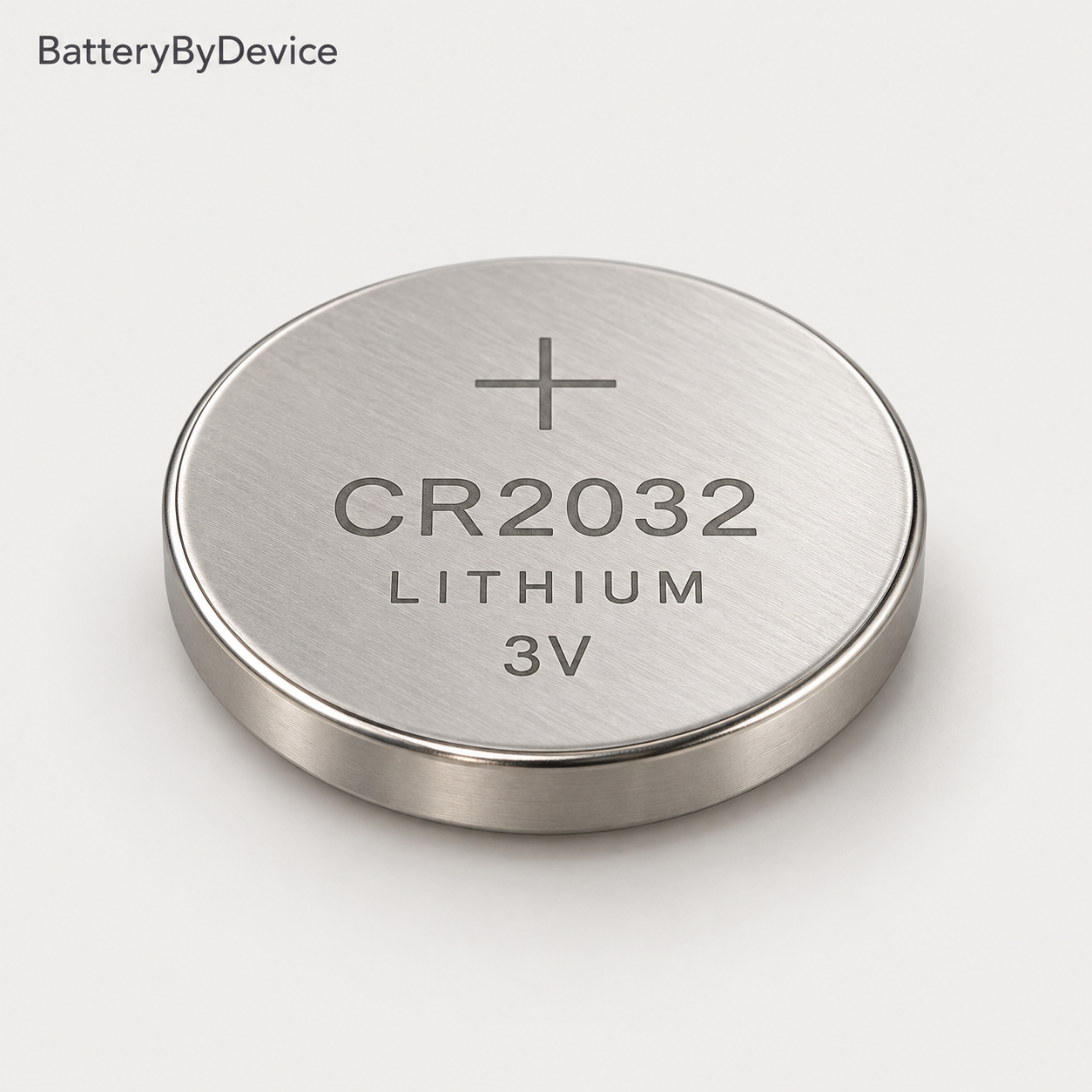

CR2032 battery reference render

CR2032 Diagram

CR2032 orthographic diagram with top, bottom or end views and side profile dimensions
Brand-neutral outline — confirm the tray in your device.

Other names

Genuine aliases and pack labels for this battery — not substitutes of a different chemistry.

DL2032 · ECR2032 · BR2032 · 2032 · KCR2032 · CR2032A

Related codes

Same battery / other names

CR2032DL2032

Also sold as

Brand or pack name for the same battery.

CR2032ECR2032

Also sold as

Brand or pack name for the same battery.

CR20322032

Same battery

Same battery, different label.

CR2032KCR2032

Also sold as

Brand or pack name for the same battery.

Commonly confused with

CR2032CR2016

Not a substitute

Same diameter family; different thickness — not interchangeable

CR2032CR2025

Not a substitute

Same diameter family; different thickness — not interchangeable

CR2032CR2050

Not a substitute

Same ~20 mm diameter and 3V lithium chemistry; CR2050 is much thicker (≈5.0 mm vs ≈3.2 mm) — not interchangeable

CR2032CR2050W

Not a substitute

Same ~20 mm diameter; CR2050W is thicker / different OEM option than CR2032

Rechargeables are not equivalents

Rechargeable coin cells (LIR, ML, VL, CTL and similar) are not drop-in replacements for disposable CR cells — voltage and charging requirements differ. Same size does not mean the same battery.

Size family

Edge thickness in the 20 mm family — thicker bar means thicker cell. Not to scale. Highlighted cell is this page.

CR2016
1.6 mm
CR2025
2.5 mm
CR2032
3.2 mm
CR2050
5 mm
CR2050W
5 mm

Device-specific caveats

From manufacturer-backed notes on devices that use CR2032 — not generic advice.

  • Avoid bitterant coatings per Wahoo
  • Do not recharge CR2032.
  • Keep coin cells away from children (ingestion hazard).
  • Wahoo recommends name-brand CR2032 without bitter coating for optimal performance.
  • Wahoo recommends Panasonic or other name-brand CR2032 without bitter/child-deterrent coating — coated cells can reduce performance.

Devices using CR2032

49
All (49)Cycling & fitness (10)Calculators (9)Garage remotes (8)Trackers (7)Weather meters (7)Remotes & audio (3)Smart home sensors (2)Connected wearables (1)Ceiling fan remotes (1)Industrial sensors (1)Kestrel (7)Garmin (5)Wahoo (5)Texas Instruments (5)HP (4)LiftMaster (4)Samsung (3)Apple (2)

Used in

Cycling & fitness10 devicesCalculators9 devicesGarage remotes8 devicesTrackers7 devicesWeather meters7 devicesRemotes & audio3 devicesSmart home sensors2 devicesConnected wearables1 deviceCeiling fan remotes1 deviceIndustrial sensors1 device

Brands: Kestrel · Garmin · Wahoo · Texas Instruments · HP · LiftMaster · Samsung · Apple

Compare

Learn more

Testers & chargers

Optional tools that fit this cell type — only where the chemistry allows. Separate from the battery answer.

Amazon links may earn us a commission. They do not change the battery answer.

Buy links are optional and separate from the battery answer.

Need one?

Need a CR2032?

Search Amazon for packs of this battery code.

Buy on AmazonAmazon UK

Buy links go to Amazon (Associates where tagged) or other affiliate programmes when available. They never change the battery answer.

Notes

Size is 20 × 3.2 mm. BR2032 looks similar but is a different lithium type — check the device.
