Battery

SR1130

1.55V silver oxide button cell

SR1130 is a 1.55V silver-oxide button cell (about 11.6 × 3.1 mm). Packs often say 389 or 390. Sharp EL-8130 and Casio ML-860 each take two SR1130 (G-10) silver-oxide cells. LR1130 / AG10 fit the same size but are alkaline — see SR1130 vs LR1130.

Chemistry
silver_oxide
Voltage
1.55 V
Diameter
11.6 mm
Thickness
3.1 mm
Used by
2 devices

Common uses: Watches · Cameras

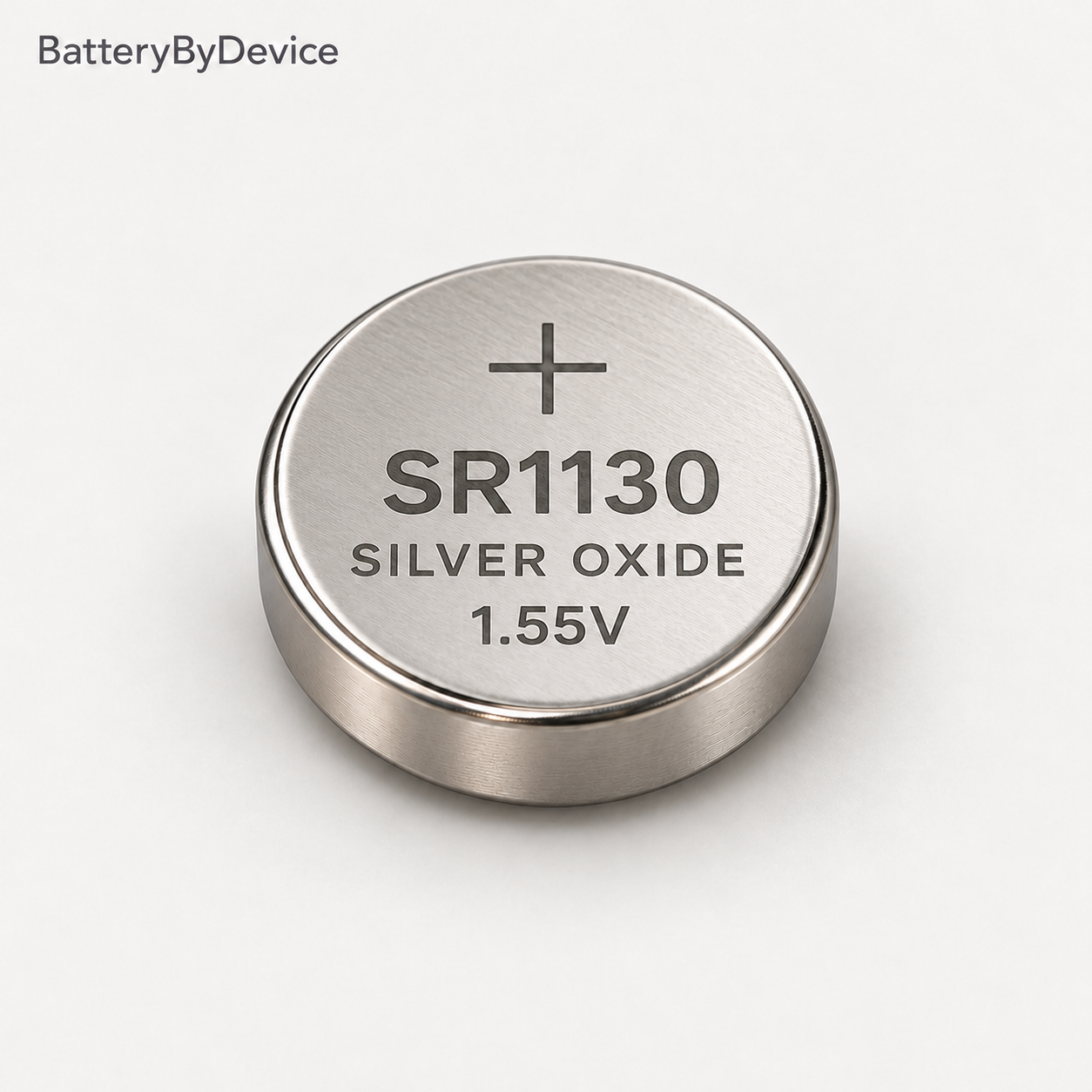

SR1130 battery reference render

SR1130 Diagram

SR1130 orthographic diagram with top, bottom or end views and side profile dimensions
Brand-neutral outline — confirm the tray in your device.

Other names

Genuine aliases and pack labels for this battery — not substitutes of a different chemistry.

389 · 390 · SR54 · SR1130W · SR1130SW · D389 · V389

Related codes

Same battery / other names

SR1130389

Same battery

Same battery, different label.

SR1130390

Same battery

Same battery, different label.

SR1130SR54

Same battery

Same battery, different label.

SR1130D389

Same battery

Same battery, different label.

SR1130V389

Same battery

Same battery, different label.

SR1130SR1130W

Same battery

Same battery, different label.

SR1130SR1130SW

Same battery

Same battery, different label.

Same size, different battery

SR1130LR1130

Same size, different type

Fits the same slot. Different type — check the manual.

Rechargeables are not equivalents

Do not substitute a rechargeable cell unless the device documentation explicitly allows it. Silver-oxide and lookalike chemistries are not interchangeable with rechargeables by size alone.

Size family

Edge thickness in the 11.6 mm family — thicker bar means thicker cell. Not to scale. Highlighted cell is this page.

LR1130
3.1 mm
SR1130
3.1 mm
SR43
4.2 mm
LR44
5.4 mm
SR44
5.4 mm
ZA675
5.4 mm

Device-specific caveats

From manufacturer-backed notes on devices that use SR1130 — not generic advice.

  • Button cells are a choking hazard — keep new and used cells away from children.

Devices using SR1130

2

Used in

Calculators2 devices
