Battery

LR1130

1.5V alkaline button cell

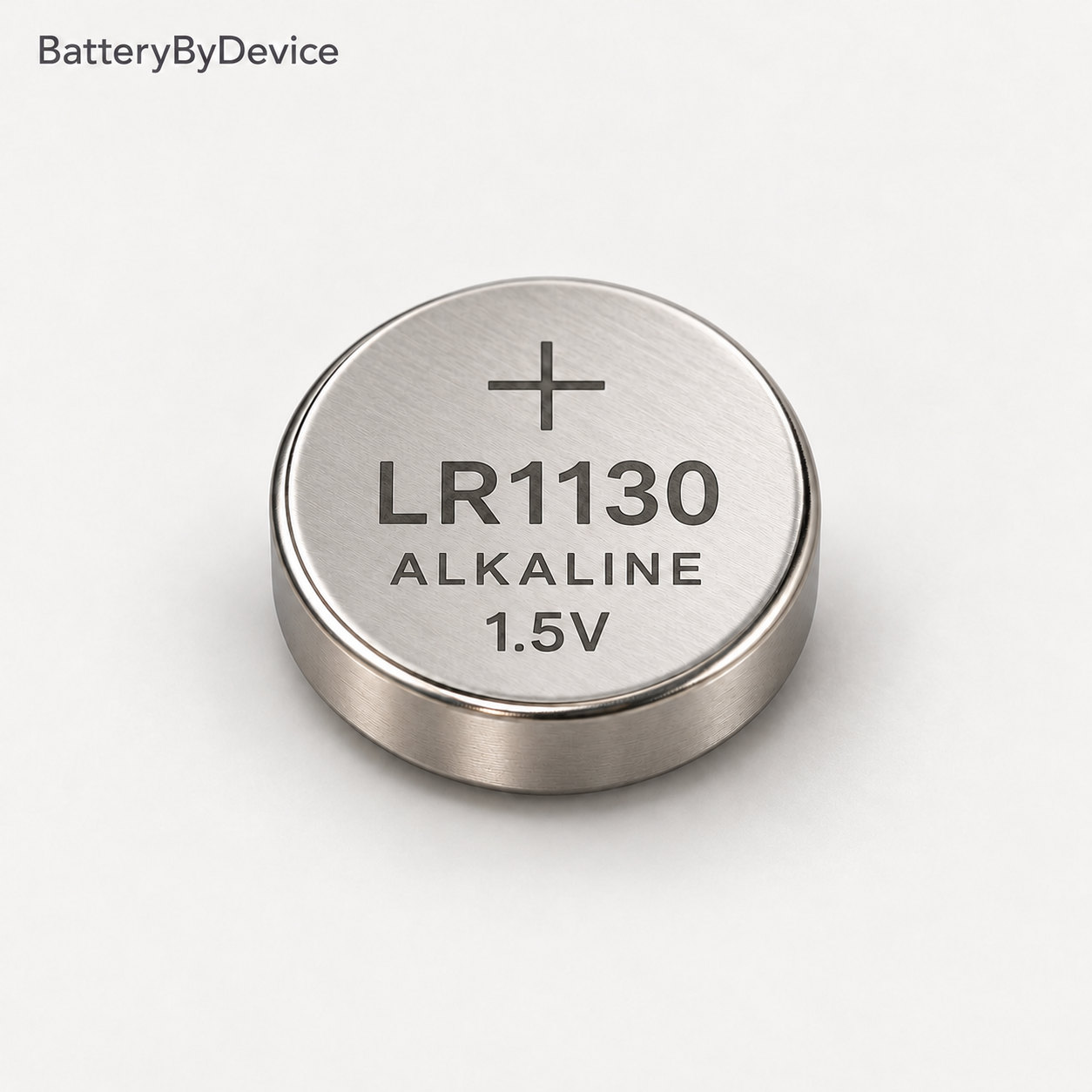

LR1130 is an 11.6 × 3.1 mm alkaline button cell. AG10, LR54 and 189 are common pack labels. Casio MS-20YC and SL-310YC use one LR54/LR1130 as the Two-Way Power backup cell (solar + button battery). SR1130 is the silver-oxide size twin — see SR1130 vs LR1130. LR44 shares the diameter but is much thicker — see LR1130 vs LR44. Solar-only models such as fx-260 SOLAR II have no replaceable LR1130.

Chemistry: alkaline
Voltage: 1.5 V
Diameter: 11.6 mm
Thickness: 3.1 mm
Used by: 2 devices

Common uses: Calculators · Toys · Small remotes

LR1130 Diagram

Brand-neutral outline — confirm the tray in your device.

Other names

Genuine aliases and pack labels for this battery — not substitutes of a different chemistry.

AG10 · LR54 · 189 · G10A

Related codes

Same battery / other names

LR1130189

Same battery

Same battery, different label.

LR1130AG10

Same battery

Same battery, different label.

LR1130LR54

Same battery

Same battery, different label.

LR1130G10-A

Same battery

Same battery, different label.

Same size, different battery

LR1130SR1130

Same size, different type

Fits the same slot. Different type — check the manual.

Size family

Edge thickness in the 11.6 mm family — thicker bar means thicker cell. Not to scale. Highlighted cell is this page.

3.1 mm

3.1 mm

4.2 mm

5.4 mm

5.4 mm

5.4 mm

Devices using LR1130

All (2)Calculators (2)Casio (2)

Used in

Calculators2 devices

Brands: Casio
